Summary

Outlook may sometimes have issues with connections or credentials pop up. This document covers some things to do to help troubleshoot this.

Check for a service outage

Check for a Hosted Exchange outage listed on the Micron21 status page at https://m21status.com. If there is an outage, you may need to wait until the outage is over before your issue is resolved.

Check the mail client is supported and meets security requirements

See https://support.micron21.com/kb/articles/hosted-exchange-compatible-mail-clients for a list of supported mail clients, operating systems, as well as security requirements details.

Confirm login details

Check if the username is correct

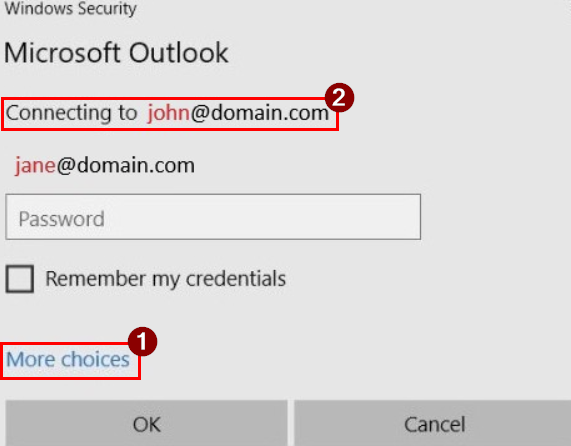

If you have multiple accounts configured, Outlook will sometimes put the username of an account that differs to the one the password is being requested for (see screenshot below for example).

If you notice this:

1. Select 'More choices' (1) .

2. Enter the email for the account that is specified in the 'Connecting to' (2) area.

   1. If entering your email in username@domain.com format doesn’t work, please also try ‘micron21\username’.

3. Select ‘Remember my credentials’.

4. Select ‘OK’.

Check if the domain is correct

If you are using a device connect to a workplace that has an Active Directory domain configured, sometimes Outlook will incorrectly include this domains details in the authentication prompt. If you see a box like the one below that has your domain name in place of ‘domain name’, please include the ‘micron21’ domain when entering your username, as shown in the below image.

Check if the credentials are correct through web login

Confirm credentials are correct by logging into https://outlook.micron21.net/owa.

The username format should be either ‘username@domain.com’ or ‘micron21\username’.

If you are able to log into OWA without issue, this suggests you have a configuration issue or an issue with Outlook.

Check for modern authentication login box

If you have previously had an Office 365 account and the domain is still configured in Office 365, Outlook will favour the Office 365 autoconfiguration on that domain.

You can spot this issue because the credentials request prompt looks like the 'modern authentication' prompt and not the 'Exchange On-Premise' prompt. See the below image for an example of what the 'modern authentication' prompt looks like.

Force Outlook to skip Office 365 autodiscovery

1. Close Outlook

2. Open ‘Registry Editor’

3. Locate and then select the following registry subkeys (Where x is the version of Outlook that’s installed):

   1. HKEY_CURRENT_USER\Software\Microsoft\Office\x.0\Outlook\AutoDiscover\

   2. HKEY_CURRENT_USER\Software\Policies\Microsoft\Office\x.0\Outlook\AutoDiscover\

4. In each subkey above, right-click the mouse, hover over ‘new’ and select ‘DWORD’ to create a new DWORD entry.

   1. Name it ‘ExcludeExplicitO365Endpoint’

   2. Set the DWORD value to Decimal value '1'

5. Open Outlook.

Note: If the key is not present, you will need to create it

Check antivirus or other protection products

Temporarily disable or uninstall antivirus or antimalware protection products to ensure they are not causing any issues. If disabling antivirus or antimalware products resolves the connection issue, put an exclusion in for outlook.micron21.net and re-enable the protection product.

Remove cached credentials

Incorrect cached credentials can cause an Outlook re-prompt. Remove credentials as follows:

Windows

1. Select ‘Start’

2. Type ‘Credentials Manager’ and open it once it’s found

3. Select ‘Windows Credentials’

4. Remove credentials that match 'ex-01.micron21.net' or 'outlook.micron21.net' as well as any records that have your username with '(Windows Identity)' appended to the end

Mac

1. Select the magnifying glass icon at the top right

2. Type 'Keychain' and open it once found

3. Remove cached credentials

4. Remove credentials that match 'ex-01.micron21.net' or 'outlook.micron21.net' as well as any records that have your username with '(Windows Identity)' appended to the end

Remove and re-add the email account

Windows

1. Open 'Control Panel'

2. Select 'Mail'

3. Select 'Email Accounts’

4. Remove the account

5. Select 'New'

6. Re-add the account

Mac

1. Open Outlook

2. Select 'Preferences

3. Select 'Accounts'

4. Remove the account

5. Select the 'Plus' icon at the bottom left of the window

6. Re-add the account

Create a new mail profile

Windows

1. Open 'Control Panel'

2. Select 'Mail'

3. Select 'Show Profiles'

4. Select 'Add'

5. Create a new profile

6. Add an e-mail account to the new profile

7. Select to prompt for a profile when starting Outlook

8. Open Outlook

9. Select the new profile

Mac

1. From Finder, open the 'Applications' folder

2. 'Ctrl-click' or 'right-click' the 'Microsoft Outlook' application, and select 'Show Package Contents'

3. Browse to 'Contents > SharedSupport'

4. Launch 'Outlook Profile Manager'

5. Add a new profile

6. Highlight the new profile and select 'Set the default profile > Set as Default'

7. Open Outlook

Update Outlook

See Microsoft documentation for updating Outlook

https://support.microsoft.com/en-us/office/install-office-updates-2ab296f3-7f03-43a2-8e50-46de917611c5

Run Outlook in Safe Mode

Run Outlook in Safe Mode to ensure no plug-ins are causing any issues.

See this Microsoft support article for more information about running Outlook in Safe Mode.

Check Autodiscover record

Micron21 use the SRV method for Outlook auto configuration. See https://support.micron21.com/kb/articles/configure-dns-for-hosted-exchange for configuration details and steps to confirm the configuration is OK.

Perform autoconfiguration check using Outlook

1. Open ‘Outlook’

2. In the system tray at the bottom right of the screen near the clock, look for the Outlook icon.

3. Hold the ‘ctrl’ button on the keyboard and right-click the Outlook icon with the mouse.

4. Select ‘Test Email AutoConfiguration.

5. Enter your e-mail address and password.

6. Untick ‘Use Guessmart’ and ‘Secure Guessmart Authentication’.

7. Select ‘Test’.

8. Select the ‘Log’ tab and check if a Micron21-based SRV auto-discover record was found successfully.

9. If not, determine where the auto-discover record was found and removed or updated to point to outlook.micron21.net.

Check antivirus or other protection products

Temporarily disable or uninstall antivirus or antimalware protection products to ensure they are not causing any issues. If disabling antivirus or antimalware products resolves the connection issue, put an exclusion in for outlook.micron21.net and re-enable the protection product.

Check TLS and NTLM configuration

TLS

• TLS 1.0, 1.1, and 1.3 are not supported.

• TLS 1.2 is required.

Please ensure your computer can communicate via TLS 1.2. Refer to https://www.alitajran.com/check-tls-settings-windows-server for information about checking TLS 1.2.

NTLM

• NTLMv1 is not supported.

• NTLMv2 is is required.

To ensure your computer is configured to use NTLMv2, close Outlook and do the following:

1. Open Registry Editor.

2. Locate the following registry key (Type DWORD): ‘HKEY_LOCAL_MACHINE\System\CurrentControlSet\Control\Lsa\LmCompatibilityLevel’

3. Ensure the key is set to at least ‘3’ but ideally ‘4’.

If the key is set to less than 3, you won’t be able to connect to the Hosted Exchange platform.

If you don’t see the ‘LmCompatibilityLevel’ key, it means your system is configured to use default configuration. From Windows 2008 R2 and onwards, the default is to support NTLMv2 authentication; If your system is newer than this, NTLMv2 authentication should be automatically configured upon connection to Hosted Exchange.

Confirm SSL decryption or inspection is not being performed

Any devices or software that performs any kind of SSL interaction where the SSL certificate is mimicked (e.g also known as a ‘man in the middle’ scenario) will cause issues with connectivity to Hosted Exchange. These include services like antivirus or antimalware performing things like ‘encrypted web scans’ or ‘examine encrypted connections’, SSL and fireall devices performing SSL encryption or SSL packet inspection.

Narrow the issue down further

Complete the following to narrow down the cause of your issue. The result of following can help point us in the direction of the issue.

• Try another mail client: If the issue doesn’t occur on a different mail client, then your primary mail client is the cause of your issue.

• Try another computer on the same network: If the issue doesn’t occur on another computer in the same network, it means the network is OK, but the issue resides with your primary computer.

• Try your computer on a different network: If moving to a different network (e.g hot spot off your phone) resolves the issue, then the issue resides with your primary network. Next step is to check for SSL packet decryption and put ex-01.micron21.net and outlook.micron21.net in as exceptions.

• Try a different computer on a different network: If moving to a new computer on a new network resolves the issue, then the issue lies with your primary computer or network.

Still having issues?

If you are still having issues after attempting all of the above fixes, then Micron21 is unable to determine the root cause of your issue.

You may need to access your mail via the web portal at https://outlook.micron21.net/owa until you have been able to resolve your issue.
